September 23, 2010

2011 Cardinal - Manuel Cantero Frame

The Cantero has partial heat treatment BB, HT, Dropouts. Double butted top and down tubes, tapered chain and seat stays, and a slightly tapered seat tube. The external gusset is stamped with Cardinal's Wing logo.
Sizes: 20.8”, 21”, 21.25; 100% cromoly
Rear end length: 13.5”
Head tube angle: 75°
Seat tube angle: 71°
Bottom bracket height: 11.6”
Bottom Bracket style: Mid
Drop outs: 14mm
Brake mounts: Seat stay, removable
Gyro: Removable mounts
Weight: 4.6 pounds

September 21, 2010

S&M BTM Frame


This is the 2011 S&M BTM Tim Hoder Signature Frame. Nothing innovative, just a top quality, American built frame with stylish graphics. Nothing over the top. Down and top tube gussets, integrated seat clamp and headset. Removable brake mounts. Just the way frames should be. Available in three excellent choices. I can hardly decide which one I would get. Here's all the specs.

TT 20.75", 21", 21.25"
CS 13.125"-13.5"
HT ANGLE 75°; Integrated (45°/45°, 41.8mm) Drilled for head badge
ST ANGLE 71°
SEAT POST 1" (25.4mm); Integrated clamp
BB HEIGHT 11.5"
BB STYLE Mid
STANDOVER 8.75"
BRAKE MOUNTS Thread-On 990 Mounts
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
TUBESET Butted True Temper SuperTherm Tubing
FINISH Translucent (Black, Gold, or Green)
WEIGHT
20.75": 4.65lbs/2.11kg
21": 4.675lbs/2.12kg
21.25": 4.678lbs/2.12kg

September 17, 2010

2011 Sunday Signature Models

Complete Completes from Sunday Bikes

2010 is the year of the Sunday Funday complete. There are three models: the Funday Pro, the Funday EX (Expert), Funday AM (Amateur). Each model available in two different colors, while the bikes themselves range from beginner to professional.

However, for 2011 it will be the year of the signature series. Two of them in fact, the Aaron Ross and the Gary Young. They will be available in four models: AM, EX, Pro, and Signature. We'll just be looking at the Signature models today. Check the others at Sundaybikes.com

Sunday still offers up the Model C 24" cruiser in new colorways for 2011 and two models, the EX and Pro (There might even be some changes/improvements - I haven't looked yet). And there is the introduction of a new bike called Scout.

First up we have the 2011 Sunday Gary Young SIG.
FRAME: Full CRMO, 20.75” TT, 13.25” CS, 11.5” BB, 74.5° HA, 71° SA
FORK: Sunday Morning 2.1, 41-Thermal
HANDLEBARS: Sunday Victory Replica, Full CRMO, 8.32” rise, 12° back, 4° up
STEM: Odyssey Classic Front Load
HEADSET: Integrated Headset
CRANKS: Odyssey Twombolt, 175mm
BOTTOM BRACKET: Sealed, Mid, 22mm
SPROCKET: Sunday 6061 CNC, 25t
PEDALS: Odyssey Trail Mix
CHAIN: KMC Z-510HX
RIMS: Odyssey Hazard Lite, 36-H
REAR HUB: GSport Ratchet, Sealed, 14mm, 9-T
FRONT HUB: Odyssey Vandero 2, Sealed, 3/8”
REAR TIRE: Odyssey Path, 2.1”
FRONT TIRE: Odyssey Aitken, 2.25”
SEAT: Odyssey Senior, Pivotal
POST: Pivotal
CLAMP: Sunday
GRIPS: Odyssey Gary Young
BRAKES: Odyssey EVO II
LEVER: Odyssey Monolever, Small
CABLE: Odyssey Linear
WEIGHT: 25 lbs.
USA MSRP: $899.99

And here we have the 2011 Sunday Aaron Ross SIG.
FRAME: Full CRMO, 20.75″ TT, 13.25″ CS, 11.5″ BB, 74.5° HA, 71° SA
FORK: Sunday Morning 2.1, 41-Thermal
HANDLEBARS: Odyssey Spacebar Replica, Full CRMO, 8.15″ Rise, 12° Back, 2° Up
STEM: Odyssey Classic Front Load
HEADSET: Integrated, 1 1/8″
CRANKS: Odyssey Twombolt, 175mm
BOTTOM BRACKET: Sealed, Mid, 22mm
SPROCKET: Sunday 6061 CNC, 25t
PEDALS: Odyssey Trail Mix
CHAIN: KMC Z-510HX
RIMS: Odyssey Hazard Lite, 36-H
REAR HUB: GSport Ratchet, Sealed, 14mm, 9-T
FRONT HUB: Odyssey Vandero 2, Sealed, 3/8″
REAR TIRE: Odyssey Aaron Ross, 2.10″
FRONT TIRE: Odyssey Aaron Ross, 2.35″
SEAT: Odyssey Aitken, Pivotal
POST: Pivotal
CLAMP: Sunday
GRIPS: Odyssey Aaron Ross
BRAKE: Odyssey EVO II
LEVER: Odyssey Monolever, Small
CABLE: Odyssey Linear
WEIGHT: 25 lbs.
USA MSRP: $899.99

September 10, 2010

Sneak Peek: 2011 Sunday Completes Flipbook


SUNDAY BIKES | FACEBOOK | TWITTER

2011 Redline Completes

Redline has really outdone themselves for 2011. These completes are far more stylish than the 2010's (no doubt there were some really nice completes for 2010). And still they bring a tremendous value for the price. Quality has not been spared for looks here, with three 100% Full Chromo options available in 21" and 21.25" TT, and the Device is fully heat-treated including frame, fork, bars, and the Device G6 cranks.

I'm going to highlight the top three here, and you can check out the rest at Redline.com or on RIDEbmx.com.

And now to the bikes!

2011 Redline Device complete
Frame: Device G6 100% Heat-Treated Chromo, Integrated HT, Mid BB, Internal Butted DT, Removable Brake & Rotor Mounts, Cast Dropouts & SPC
Fork: Device G6 100% Heat Treated Chomo 20” / Butted Steerer & Tapered Butted Chromo Legs
Handlebar: Device G6 100% Heat Treated Chromo 28.5” W x 8” T x 12° Back x 2° Up
Stem: Redline HollowPoint Pro 55mm
Grips: Redline Hex Pro w/plugs
Headset: FSA Impact Integrated 1-1/8” Sealed
BB Set: Redline Mid Sealed Bearing / Hollow Chromo Spindle
Crank: Device G6 100% Heat Treated Chromo Tubular 175mm 2.5 Piece
Chainwheel: Redline Device Aluminum 3D CNC 6mm x 1/8” x 25T
Tires: Odyssey Aitkin P-Lyte 20 x 2.1” Front / 1.85” Rear
Rims: Sun Estate Rear / Envy Front / Welded / 36H
Spokes: Black Stainless Steel
Front Hub: Redline Aluminum Sealed Bearing / 3/8” Solid Chromo Axle
Rear Hub: Redline Cassette Aluminum Sealed Bearing / 14mm Hollow Chromo Axle
Rear Cog: Redline Driver 1/8” x 9T
Brake: Odyssey Evo II U-Brake
Brake Pads: Tektro Clear Compound
Lever: Odyssey Modulever
Cable: Odyssey Slik Single Cable
Chain: KMC K510HX
Saddle: Redline Pivotal Padless
Seatpost: Pivotal Stump 25.4mm
Seatpost Clamp: Device G6 Cast
Pedals: Odyssey Twisted PC Platform / Chromo Spindle
Extras: Redline Monster Smoothie Pegs / 1 Pair
Weight: 24.2 lbs w/pegs
HT = 74.5°
ST = 71°
TT = 21.25”
CS = 13.75”
BB = 11.8”
MSRP: $899.99


2011 Redline Covet complete
Frame: D/S/P Design, All Tubes Chromo, Integrated HT, Mid BB, Butted DT, Cast Dropouts, Removable Brake & Rotor Mounts
Fork: Redline Monster / Chromo Steerer & Tapered Butted Chromo Legs
Handlebar: Redline 28.5” W x 8” T x 12° Back x 2° Up / Chromo
Stem: Redline HollowPoint Pro 55mm
Grips: Redline Hex Pro w/plugs
Headset: FSA Impact Integrated 1-1/8” Sealed
BB Set: Redline Monster Sealed Bearing Mid / Chromo Axle
Crank: Redline Monster Tubular Chromo 175mm 3-Piece
Chainwheel: Redline Device Aluminum 3D CNC 6mm x 1/8” x 25T
Tires: Odyssey Dirt Path 20 x 2.1” Front / 1.85” Rear
Rims: Sun Estate Rear / Envy Front / Welded / 36H
Spokes: Black Stainless Steel
Front Hub: Redline Aluminum Sealed Bearing / 3/8” Solid Chromo Axle
Rear Hub: Redline Cassette Aluminum Sealed Bearing / 14mm Hollow Chromo Axle
Rear Cog: Redline Driver 1/8” x 9T
Brake: Tektro FX720 U-Brake
Brake Pads: Tektro Clear Compound
Lever: Tektro XL751
Cable: Single Cable
Chain: KMC K510HX
Saddle: Redline Pivotal Padless
Seatpost: Pivotal Stump 25.4mm
Seatpost Clamp: Integrated Bolt
Pedals: Odyssey Twisted PC Platform / Chromo Spindle
Extras: Redline Monster Smoothie Pegs / 1 Pair
Weight: 27.8 lbs w/pegs
HT = 74.5°
ST = 71°
TT = 21.25”
CS = 13.75”
BB = 11.8”
MSRP: $599.99


2011 Redline Complex complete
Frame: D/S/P Design, All Tubes Chromo, Integrated HT, Mid BB, Butted DT, Cast Dropouts, Removable Brake & Rotor Mounts
Fork: Redline Monster / Chromo Steerer & Butted Tapered Legs
Handlebar: Redline 28.5” W x 8” T x 12° Back x 2° Up / Chromo
Stem: Redline HollowPoint 55mm
Grips: Redline Hex Pro w/plugs
Headset: FSA Impact Integrated 1-1/8” Sealed
BB Set: Redline Monster Sealed Bearing Mid / Chromo Axle
Crank: Redline Monster Tubular Chromo 175mm 3-Piece
Chainwheel: Redline Device Aluminum 3D CNC 6mm x 1/8” x 25T
Tires: Odyssey Dirt Path 20 x 2.1” Front / 1.85” Rear
Rims: Alienation Blacksheep Front / Skylark Rear 36H
Spokes: Black
Front Hub: Redline Aluminum Sealed Bearing / 3/8” Solid Chromo Axle
Rear Hub: Redline Cassette Aluminum Sealed Bearing / 14mm Hollow Chromo Axle
Rear Cog: Redline Driver 1/8” x 9T
Brake: Tektro FX 15 U-Brake
Brake Pads: Tektro Clear Compound
Lever: Tektro 275A Hinged
Cable: Single Cable
Chain: KMC K510HX
Saddle: Redline Pivotal
Seatpost: Pivotal 25.4mm
Seatpost Clamp: Integrated Bolt
Pedals: Odyssey Twisted PC Platform / Chromo Spindle
Extras: Redline Monster Smoothie Pegs / 1 Pair
Weight: 28.5 lbs w/pegs
HT = 74.5°
ST = 71°
TT = 21”
CS = 13.75”
BB = 11.8”
MSRP: $499.99

Check out the rest of this great line of completes on the Redline website. Tons of options for beginners and novice bmxers.

September 9, 2010

Subrosa Armada 2009

Posted by papawheelie on TCUB

Frame: 09 Armada 21"tt
Fork: Shadow Creeper 026
Headset: FSA Impact intergrated
Bars: Shadow Vultis 8" rise
Stem: Shadow Attack
Grips: Subrosa
BB: Profile mid
Cranks: 175mm
Chainwheel: Shadow Scream 25t
Chain: Shadow 1/2 link
Pedals: Animal Hamilton
Seat: Subrosa pivotal
Seat post: Subrosa layback
Brake: Demolition Vulcan w/ Tech 77 lever
Front  rim: Atomlab laced to Atomlab hub w/ female axle
Rear rim: Atomlab laced to Atomlab hub 10t driver
Tires: animal GLH-R folding  front-20x2.25; rear-20x2.10
Weight: 23lbs

Modifications: cut forks, shaved rear axle

Simple Enigma V1 - Black & Red

Posted by papawheelie on TCUB

Frame: Enigma V1 21.05"tt
Fork: Odyssey 41 Thermal Race
Bars: S&M Slams
Stem: S&M Redneck
Grips: Eclat Chets w/ Demolition ends
Headset: Fly red
BB: spanish red Profile Hop Up
Cranks: Odyssey 41 Thermal rhd/lhd
Chainwheel: Eastern Medusa 25t
Pedals: Odyssey Twisted PC
Seat: Animal stitched pivotal
Post: Coalition
Clamp: Mosh
Brake: Tektro
Cable: clear red Porkchops
Front rim: Fly front laced to a Demolition Mary Kate
Rear rim: Fly front laced to a Demolition Ashley 9t driver
Tires: f/ animal GLH 20x2.25  r/ animal GLH 20x2.10

Modifications: cut forks, seat and pedals dyed crimson red

September 6, 2010

KIS Bike Co. The Dark frame

TT - 20.75" / 21"
Chain Stay Length - 13.75"
Head angle - 75°
Seat angle  - 71°
Tapered Seat and Chain Stays
Tapered Seat Tube
Integrated Seat Clamp - Ambidextrous. (Flip it round to tighten with your left hand)
Integrated Headset
Spanish BB - Height 11"
'SPS' Dropouts (TM) [PATENT PENDING]
Removable Seat stay U-brake hardware & Cable guides (Included)
Removable Gyro tabs  (Included)
Integrated/Internal Down-Tube gusset
Multi-Butted 4130 Tubing
Heat Treated BB, Head-Tube & Dropouts OR Fully Heat Treated
Colours -  Flat Black / RAW (Flat Grey) / Chrome Plate.
Matt Grey (Heat treated Frame)
Weight - 1976g / 4.35 lbs (Excluding brake hardware)

Frame: KIS Dark
Fork: KIS Stylus
Bar: KIS Altus
Sprocket: KIS Cutter
Seat: KIS Mini
Clamp: KIS Berry
Hub Bolts: KIS Titanium
Tyres: Fit
Rims: Fly
Hubs: KHE
Cranks: Madera
Pedals ODY jcpc
Stem: Proper F/L
Grips: The Make
Brake: Fly
Lever: ODY
Cables: ODY
Gyro: Snafu

September 4, 2010

Sputnic Space Cobra


Sputnic - Space Cobra Promo from Sputnic BMX on Vimeo.


Material: 4130 Sanko chromoly, double butted down tube
Top Tube: 20.6″, 20.8″, 21.1″
Chain Stay: 13.75″ with room to remove wheel
Head Tube: 75 degrees, heat treated, CNC machined, drilled for gyro tabs
Seat Tube: 71°, single butted, 9″ standover height with integrated seat clamp
BB Type: mid, CNC machined, heat treated grindable design
BB Height: 11.75″
Dropouts: 5mm thick heat treated
Extras: Externally butted and tapered seat stays, low profile removable brake mounts
Weight: 4.9 lbs for 20.6″ top tube
Colors: matte black, matte red, gloss purple

Peter Riiga - 42BMX

Peter Riiga 1 minute edit from Peter Riiga on Vimeo.

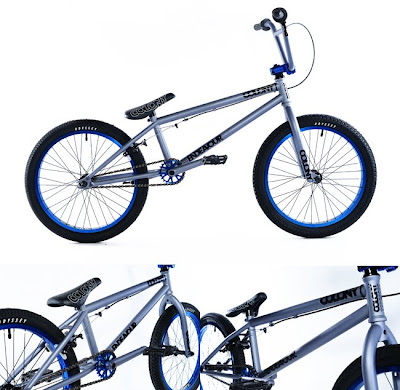

2011 Colony Completes


Frame: Colony Endeavour Full CrMo 21”TT 13.75” rear, 75.2º HA, 71º ST, MID BB, Integrated HS.
Inspired by the Rebirth frame with a stand over height of 8" (centre of BB shell to centre of TT)
Forks: Colony tapered leg, full CrMo, 1piece CNC steerer tube.
Brakes (rear): Tektro 990 style.
Brake lever (right): Dia-Comp Tech 77.
Cables: Linear slick (rear).
Headset: Integrated.
Stem: Colony Official style 6061T6.
Handlebars: Colony Bull Bars style Full CrMo.
Grips: Colony Mountjoy.
Sprocket: Colony Endeavor 25t CNC 6061 T6.
Crankset: Colony CrMo Tubular 48 spline.
Bottom Bracket: Sealed Mid 19mm.
Chain: KMC Z510.
Pedals: Colony Fantastic Plastic.
Rims: Alienation Black Sheep 36h.
Front Tyre: Odyssey Dirt Path 2.1".
Rear Tyre: Odyssey Path 1.95">
Spokes: Black steel.
Front Hub - Colony Alloy Female axle, 36hole, sealed bearing low flange.
Rear Hub - Colony Alloy Cassette, 36 hole, 14mm axle, sealed w/9t driver.
Seat & Seatpost: Colony Cee Seat/Post Combo.
Weight : 24.03lbs
Colors : Matte Black/Gold and Matte Grey/Blue

Frame: Colony Descendent Full CrMo 20.85" TT 13.75” rear, 75.5º HA, 71º ST, MID BB, Integrated HS.
Inspired by the Lowcut frame with a stand over height of 7-1/2" (centre of BB shell to centre of TT)
Forks: Colony tapered leg, full CrMo, 1piece CNC steerer tube.
Brakes (rear): Tektro 990 style.
Brake lever (right): Dia-Comp Tech 77.
Cables: Linear slick (rear).
Headset: Integrated.
Stem: Colony Official style 6061T6.
Handlebars: Colony Bull Bars style Full CrMo.
Grips: Colony Mountjoy.
Sprocket: Colony Endeavor 25t CNC 6061 T6.
Crankset: Colony CrMo Tubular 48 spline.
Bottom Bracket: Sealed Mid 19mm.
Chain: KMC Z510.
Pedals: Colony Fantastic Plastic.
Rims: Alienation Black Sheep 36h.
Front Tyre: Odyssey Dirt Path 2.1".
Rear Tyre: Odyssey Path 1.95">
Spokes: Black steel.
Front Hub - Colony Alloy Female axle, 36hole, sealed bearing low flange.
Rear Hub - Colony Alloy Cassette, 36 hole, 14mm axle, sealed w/9t driver.
Seat & Seatpost: Colony Cee Seat/Post Combo.
Weight : 24.03lbs
Colors : Blue Storm/Black and Wasabi/Wasabi (transparent greenish)

Frame: Colony 2011 Teddy Frame Full CrMo 21" TT 13.5” rear, 75.2º HA, 71º ST, MID BB, Integrated HS.
Forks: Colony Dagger, Exclusive Spiral Fluted Full Heat Treated CrMo, 1piece CNC steerer tube.
Brakes (rear): Tektro 990 style.
Brake lever (right): Dia-Comp Tech 77.
Cables: Linear slick (rear).
Headset: Integrated.
Stem: Colony Official 7075T6.
Handlebars: Colony Teddy Bars Full Heat Treated Multi Butted CrMo.
Grips: Colony Mountjoy.
Sprocket: Colony Official 25t CNC 7075T6.
Crankset: Colony Colonial V2 Full Heat Treated CrMo Tubular, 2.5 piece design.
Bottom Bracket: Colony Sealed Mid 19mm.
Chain: KMC Z510.
Pedals: Colony Fantastic Plastic.
Rims: Colony Contour 6061T6 36 hole.
Front Tyre: Odyssey Dirt Path 2.1".
Rear Tyre: Odyssey Path 1.95">
Spokes: Black Stainless steel.
Front Hub - Colony Clone, Female axle, 36hole, sealed bearing low flange.
Rear Hub - Colony Clone Female axle Cassette, 36 hole, sealed w/9t polymer bushing driver.
Seat & Seatpost: Colony Cee Seat/Post Combo.
Weight : 21.6lbs

Frame: Colony 2011 Sweet Tooth Frame Full CrMo 19.8" TT 13.5” rear, 75.2º HA, 71º ST, MID BB, Integrated HS.
Forks: Colony Dagger, Exclusive Spiral Fluted Full Heat Treated CrMo, 1piece CNC steerer tube.
Brakes (rear): Tektro 990 style.
Brake lever (right): Dia-Comp Tech 77.
Cables: Linear slick (rear).
Headset: Integrated.
Stem: Colony Official 7075T6.
Handlebars: Colony Dagger Bars Full Heat Treated Multi Butted CrMo.
Grips: Colony Mountjoy.
Sprocket: Colony Official 25t CNC 7075T6.
Crankset: Colony Colonial V2 Full Heat Treated CrMo Tubular, 2.5 piece design.
Bottom Bracket: Colony Sealed Mid 19mm.
Chain: KMC Z510.
Pedals: Colony Fantastic Plastic.
Rims: Colony Contour 6061T6 36 hole.
Front Tyre: Odyssey Dirt Path 2.1".
Rear Tyre: Odyssey Path 1.95">
Spokes: Black Stainless steel.
Front Hub - Colony Clone, Female axle, 36hole, sealed bearing low flange.
Rear Hub - Colony Clone Female axle Cassette, 36 hole, sealed w/9t polymer bushing driver.
Seat & Seatpost: Colony Cee Seat/Post Combo.
Weight : 21.6lbs

Frame: Colony 2011 Rebirth Frame Full CrMo 21" TT 13.75” rear, 75.2º HA, 71º ST, MID BB, Integrated HS.
Forks: Colony Dagger, Exclusive Spiral Fluted Full Heat Treated CrMo, 1piece CNC steerer tube.
Brakes (rear): Tektro 990 style.
Brake lever (right): Dia-Comp Tech 77.
Cables: Linear slick (rear).
Headset: Integrated.
Stem: Colony Official 7075T6.
Handlebars: Colony Bull Bars Full Heat Treated Multi Butted CrMo.
Grips: Colony Mountjoy.
Sprocket: Colony Official 25t CNC 7075T6.
Crankset: Colony Colonial V2 Full Heat Treated CrMo Tubular, 2.5 piece design.
Bottom Bracket: Colony Sealed Mid 19mm.
Chain: KMC Z510.
Pedals: Colony Fantastic Plastic.
Rims: Colony Contour 6061T6 36 hole.
Front Tyre: Odyssey Dirt Path 2.1".
Rear Tyre: Odyssey Path 1.95">
Spokes: Black Stainless steel.
Front Hub - Colony Clone, Female axle, 36hole, sealed bearing low flange.
Rear Hub - Colony Clone, Female axle Cassette, 36 hole, sealed w/9t polymer bushing driver.
Seat & Seatpost: Colony Cee Seat/Post Combo.
Weight : 21.6lbs

Angie Marino - BSD

Good Morning Eastbourne! from Angie Marino on Vimeo.
